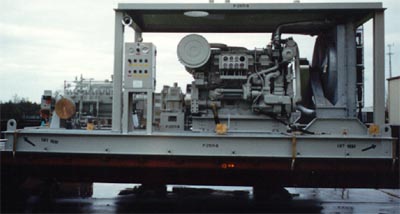

Engine Driven Horizontal Pipeline Pump

Conditions:
Area Class:
Driver:
Starting:
Package Size:

Weight:

1020 GPM @ 2300' (232 M3/H @ 701M)
Hazardous Zone 2
855 HP (637 KW)
Automatic Pneumatic
250" X 100" X 124"
(6350mm X 2540mm X 3150mm)
27,275 Pounds (12,372 Kilograms)

Features

Engine: Continuous Rated Power @ 1800 RPM
Control: Automatic Pneumatic System
Pump: API-610, 7th Edition Single Stage
Gearbox: Parallel Shaft
Coupling: Torsionally Soft
Standard pump sizes are available to 40,000 GPM (9090 M3/H)
Any API-610 material classification is available.
